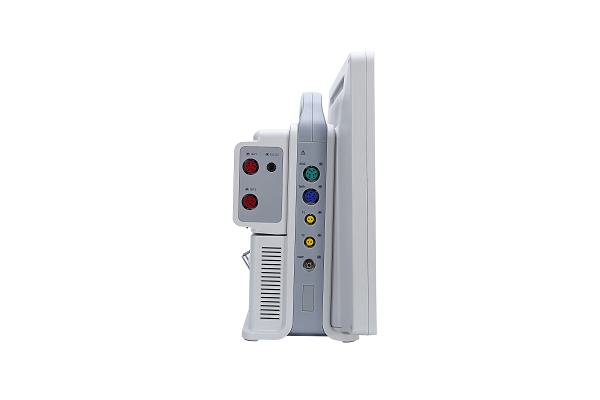

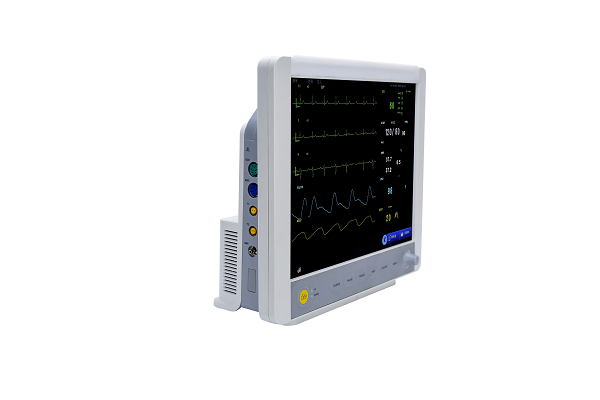

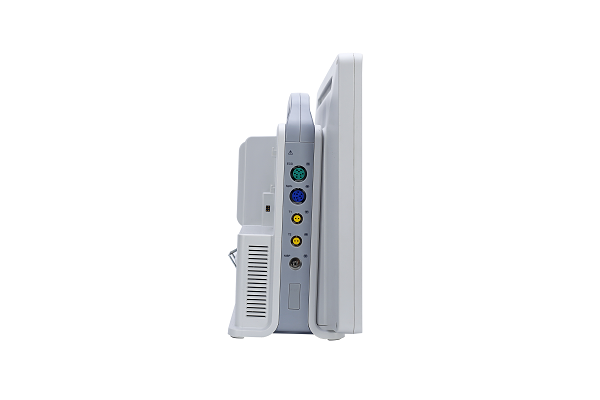

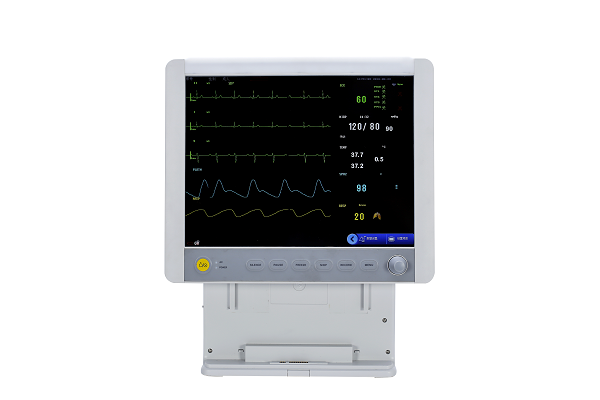

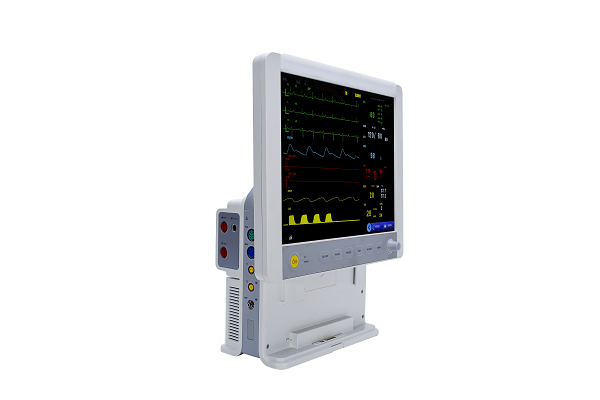

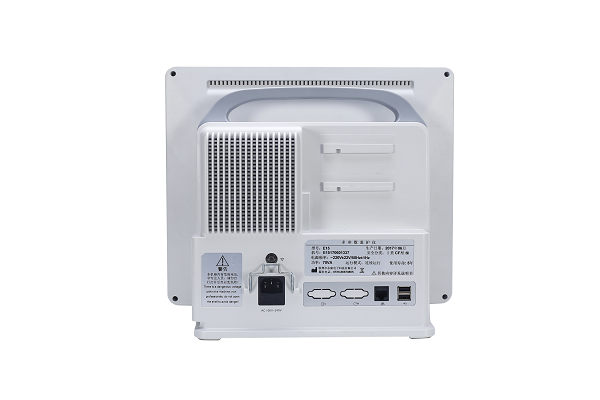

E15：MULTI-PARAMETER PATIENT MONITOR

TECHNICAL SPECIFICATIONS

Quality Standards and Classification

CE, ISO13485

SFDA: Class Ⅱb

Anti-electroshock degree:

ClassⅠequipment

(internal power supply)

TEMP/SpO 2 /NIBP: BF

ECG/Resp: CF

Application Range

Adult/Pediatric/Neonatal/Medicine/Surgery/

Operating Room/ICU/CCU

Display

15”real color TFT touch screen

Environment

Operating environment :

Temperature: 0 ~ 40 ℃

Humidity: ≤85%

Altitude: -500 ~ 4600m

Transport and Storage environment :

Temperature: -20 ~ 60 ℃

Humidity: ≤93%

Altitude: -500 ~ 13100m

Power Requirements

AC: 100 ~ 240V, 50Hz/60Hz

DC: Built-in rechargeable battery

Battery: 4000mA 11.1V lithium battery

2h operating after full charge(one piece)

5min operating after low battery alarm

Dimension and Weight

Equipment:

360 mm × 162 mm ×321 mm; 4.47 kg

Package:

420 mm ×380 mm × 321 mm; 7.3 kg

Date Storage

Trend diagram/table: 7x24h

NIBP review: 400 events

Wave review: 100min

Alarm review: 100 alarm events

Support drug concentration titration analysis

ST Segment

ST Segment Range: -2.0mV ~ +2.0mV

Accuracy: 0.02mV

ECG

5 Leads: RA, LA, LL, RL, V

Lead mode: Ⅰ,Ⅱ, Ⅲ, aVR, aVL, aVF, V

Increase: ×250，×500，×1000，×2000

Sensitivity: > 200 uV (Peak-to-peak value)

Input impedance: > 5 ( megohm )

Bandwidth: Surgery 1 ~ 20 Hz

Monitor 0.5 ~ 40 Hz

Diagnostic 0.05 ~ 130 Hz

CMRR: ≥ 100dB

Polarization Voltage: ± 300mV

Baseline Recovering Time: After defibrillation< 3 seconds

Signal Range: 8 mV（Peak-to-peak value）

Calibrating Signal: 1mV, precision ±5%

RESP

Method: RA-LL impedance

Resp Impedance range: 0.3 ~ 3 Ω

Base Impedance range: 200 Ω ~ 4000 Ω

Bandwidth: 0.1 ~ 2.5Hz

Resp rate: Adult 0 ~ 120BrPM

Neonatal/Pediatric 0 ~ 150BrPM

Resolution: 1BrPM

Precision: ±2 BrPM

Asphyxia Alarm: 10～40 seconds

NIBP

Method: Pulse wave oscillometry

Work mode: Manual/ Auto/ STAT

Measure interval of auto mode:

1,2,3,4,5,10,15,30,60,90,120,180,240,480 minute(s)

Measuring Time of STAT Mode: 5 minutes

PR range: 40 ~ 240bpm

Measure & alarm range: Adult

SYS 40 ~ 270mmHg

DIA 10 ~ 215mmHg

MEAN 20 ~ 235mmHg

Pediatric

SYS 40 ~ 200mmHg

DIA 10 ~ 150mmHg

MEAN 20 ~ 165mmHg

Neonatal

SYS 40 ~ 135mmHg

DIA 10 ~ 100mmHg

MEAN 20 ~ 110mmHg

Static pressure range: 0 ~ 300mmHg

Precision: ± 3mmHg

Pressure precision:

Max. average error: ±5mmHg

Max. standard deviation: ±8mmHg

Overvoltage protection:

Adult 300mmHg

Pediatric 240mmHg

Neonatal 150mmHg

SpO2

Range: 0 ~ 100%

Resolution: 1%

Precision: 70% ~ 100%: ±2 DIGIT

0% ~ 69%: ±no definition given

Pulse Rate

Range: 20 ~ 300bpm

Resolution: 1bpm

Precision: ±3bpm

TEMP

Channel 2

Measure & alarm range: 0 ~ 50 ℃

Resolution: 0.1 ℃

Precision (no sensor): ±0.1 ℃

Standard accessories

NIBP cuff & tube

ECG cable & electrodes

SpO2 sensor

TEMP probe

Lithium-ion battery

Power cable

Operator’s manual

Optional accessories

CO2 module

IBP module

Trolley bracket

Hanging bracket

Monitor recorder

IBP

Label ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and alarm range

ART 0 ~ 300 mmHg

PA -6 ~ 120 mmHg

CVP/RAP/LAP/ICP -10 ~ 40 mmHg

P1/P2 -10 ~ 300 mmHg

Press Sensor

Sensitivity 5 uV/V/mmHg

Impedance 300-3000Ω

Resolution 1 mmHg

Accuracy ±2% or ±1mmHg, which great

Actualization interval: about 1 Sec.

CO2

Side/Main stream

Measurement Infrared radiation absorption technique

measurement range 0 ~ 99mmHg

Precision 0 ~ 40mmHg ±2mmHg

41 ~76mmHg ±5mmHg

77~99mmHg ±10mmHg

Resolution 1mmHg

Pumping rate 70ml/min, 100ml/min

Accuracy 15% or 15ml/min big

AwRR measuring range 0 ~120BrPM

Precision 0 ~70BrPM: ±2BrPM

>70BrPM: ±5BrPM
