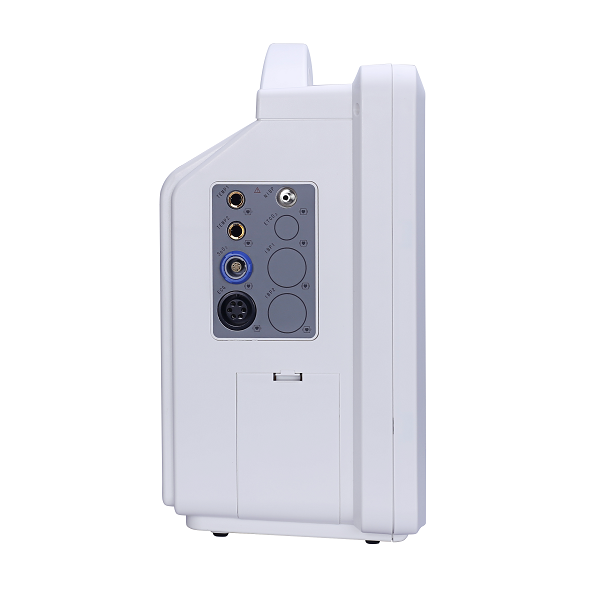

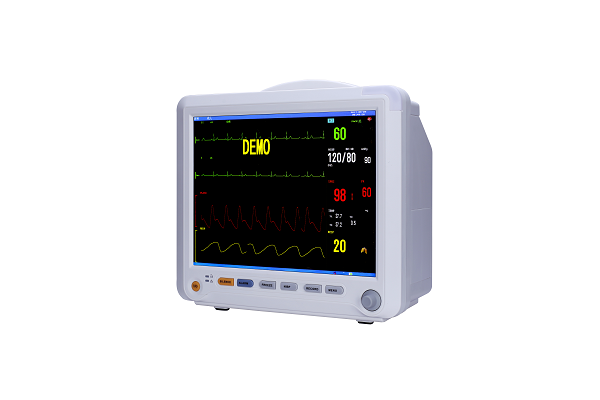

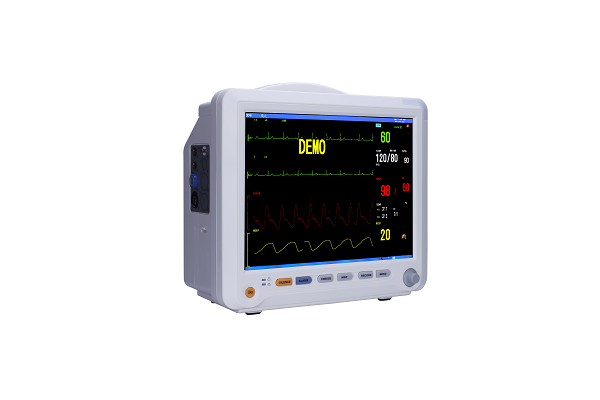

YK-8000B：MULTI-PARAMETER PATIENT MONITOR

Description

NIBP

Method: Oscillometry

Measure mode: Manual, Auto, STAT

Measure interval in auto mode:

1~5/10/15/30/60/90/120/180/240/480min

Measure period in STAT mode: 5min

Pulse rate range: 40 ~ 240bpm

Measure & alarm range: Adult

SYS 40 ~ 280mmHg

DIA 10 ~ 220mmHg

MEAN 20 ~ 240mmHg

 Pediatric

SYS 40 ~ 220mmHg

DIA 10 ~ 160mmHg

MEAN 20 ~ 170mmHg

Neonatal

SYS 40 ~ 135mmHg

DIA 10 ~ 100mmHg

MEAN 20 ~ 110mmHg

Static pressure measurement

Range: 0 ~ 300mmHg

Accuracy: ± 3mmHg

Resolution: 1mmHg Accuracy:

Max. Mean Error: ± 5mmHg

Max. Standard Deviation: 8mmHg

Overpressure protection:

Adult 300mmHg

Pediatric 240mmHg

Neonatal 150mmHg

SPO2

Measurement range: 0 ~ 100%

Resolution: 1%

Accuracy: 70% ~ 100% ± 2%

40% ~ 69% ± 3%

Environment

Operating environment :

Temperature: 0 ~ 40 ℃

Humidity: 15% ~ 80%

Pressure: 86.0 kPa ~ 106.0kPa

Transport and Storage environment :

Temperature: -20 ~ 55 ℃

Humidity: 10% ~ 90%

Pressure: 86.0 kPa ~ 106.0kPa

Quality Standards and Classification

CE, ISO13485

SFDA: Class Ⅱb

Anti-electroshock degree:

ClassⅠequipment

(internal power supply)

TEMP/SpO 2 /NIBP: BF

ECG/Resp: CF

Application Range

Adult/Pediatric/Neonatal/Medicine/Surgery/

Operating Room/ICU/CCU
