Clinical validation

Blood oxygen saturation was measured by pulse filtering using intelligent pulse

To provide accurate blood oxygen measurements, even during exercise

Still accurate under low perfusion or other harsh conditions

Yonker automatically adjusts to each patient's condition

To provide fast and reliable reads

Product specification

Measurement range :  70~99%

Measurement  Accuracy:   80%~99%: ±2digits;

                                         70%~79%: ±3digits;

no definition for less than 70%

Resolution: SpO2 ±1%

Pulse Rate

Measure range: 30~240 bpm

Accuracy ±1bpm or ±1% (Take the larger value)

Conditions of use & Packaging information

Battery Model : 2pcs AAA-size alkaline batteries

Power consumption: less than 30mA

Operation Temperature: 5~40℃

Storage Temperature: -10~+40℃

Ambient Humidity 15%~80% no condensation in operation

Atmosphere pressure: 70kPa~106kPa

 Product size:57.7*35.9*30mm

Weight after color box packaging: 50g(excluding battery)

FEATURES

●Anti-ambient light interference ability: pulse oximeter tester to apply interference signal test, the instrument can work normally.

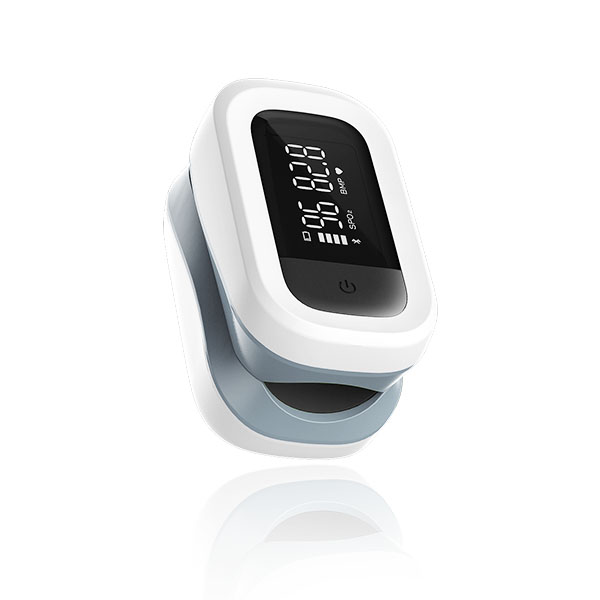

●Dual color OLED displays SpO2, PR, , waveform, Pulse bar;

●Gravity sensing function, 4 different display modes.

●Low power consumption, suitable for long-term use, when the battery is low, there is a warning display.

●automatically power off;

——————————————————————————————————————————————————————————————————————————————
