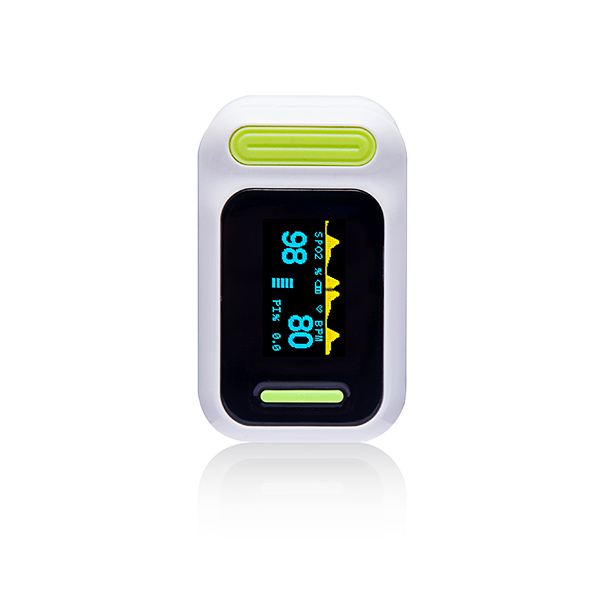

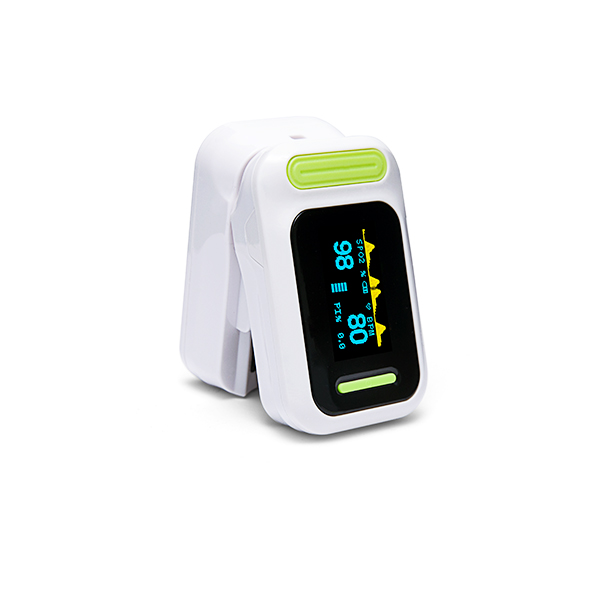

Fingertip Pulse Oximeter YK - 83ABC
One button measurement, fast, accurate and comfortable
SPO2 PR and PI functional test
It can also meet the needs of customers for fast and accurate value and convenience to carry
Product specification
SpO2
Measurement range 70~99%
Measurement Accuracy 80%~99%: ±2digits;
70%~79%: ±3digits;
no definition for less than 70%;
Resolution: SpO2 ±1%
Pulse Rate
Measure range; 30~240 bpm
Accuracy ±1bpm or ±1% (Take the larger value)
Conditions of use & Packaging information
Battery Model : 2pcs AAA-size alkaline batteries
Power consumption: less than 30mA
Operation Temperature : 5~40℃
Storage Temperature: -10~+40℃
Ambient Humidity 15%~80% no condensation in operation
10%~80% no condensation in storage
Atmosphere pressure 70kPa~106kPa
Product size:57.7*35.9*30mm
Weight (without battery) 26.5gColor box size: 90*60*37mm
Weight after color box packaging: 46g(excluding battery)
FEATURES
●Low power consumption, suitable for long time use, when the battery low, there is a warning display
●Dual color OLED displays SpO2, PR, , waveform, Pulse bar;
●The unique PI index effectively reflects the pulsating blood flow
●automatically power off;
——————————————————————————————————————————————————————————————————————————————
